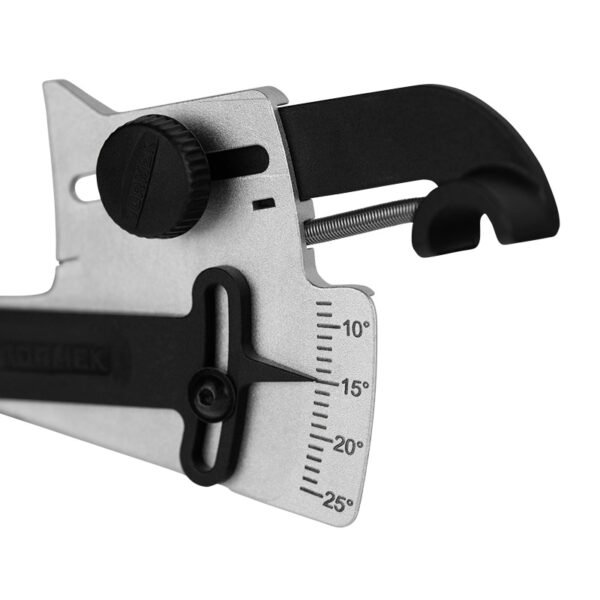

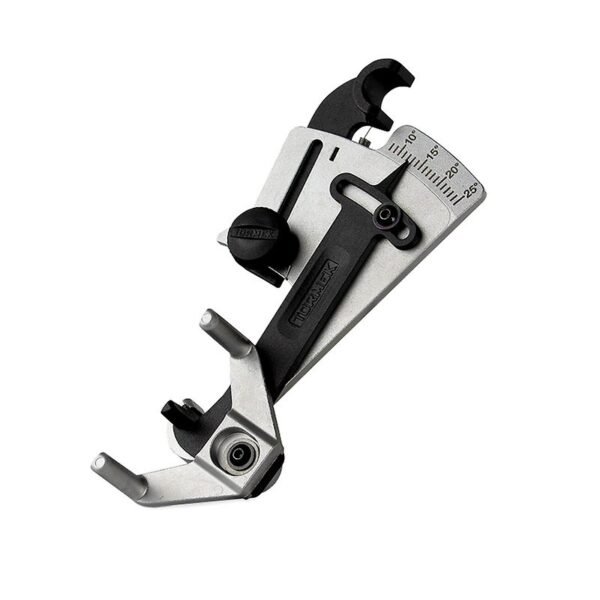

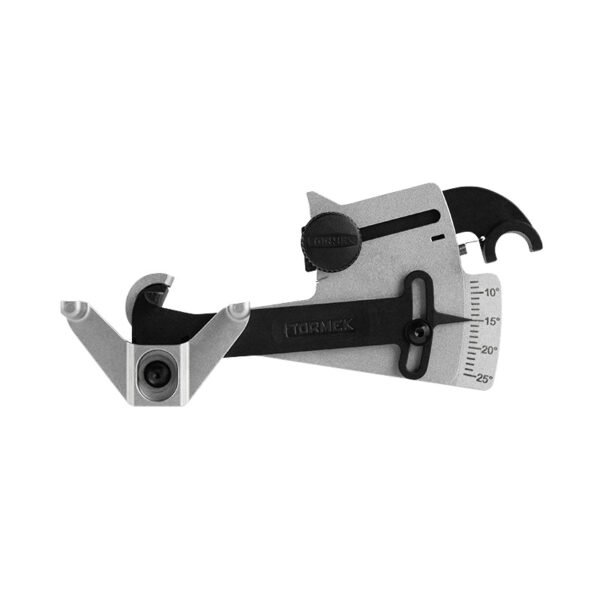

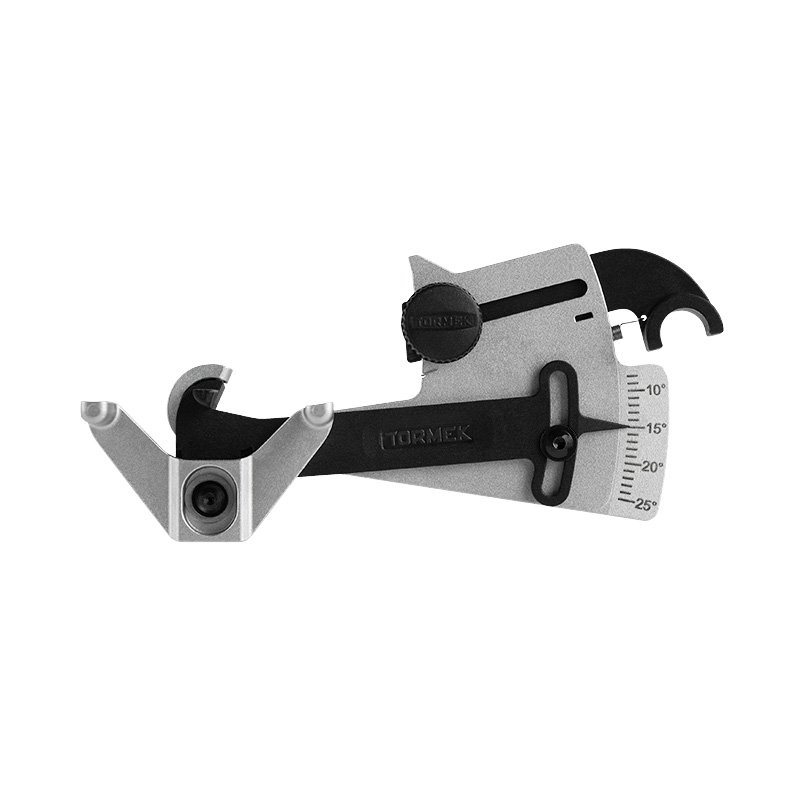

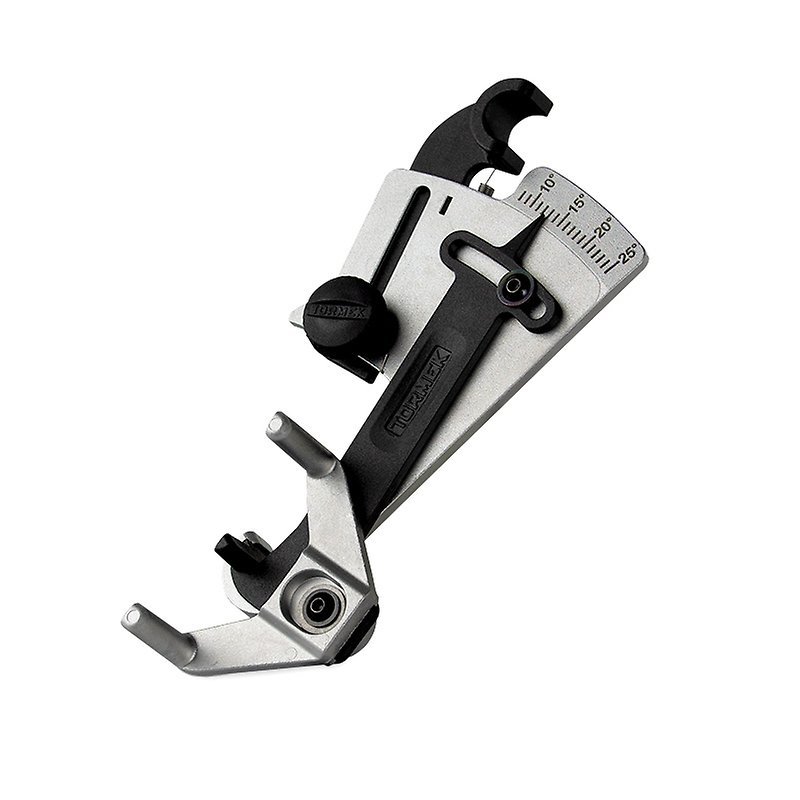

Set the exact sharpening angle for any type of knife
With the KS-123 Knife Angle Setter you set the exact sharpening angle for virtually any knife. In three easy steps, this patented and sophisticated solution lets you set the precise angle even on knives with tapered blades. It is self-adjusting for the diameter of the grinding wheel, and fits all Tormek machines with a universal support. The calculations to get the right angle is based on exact geometric measurements, so this analog angle setter is always correct. Setting the sharpening angle on your knife has never been easier and more precise!
Μου αρέσει να μαγειρεύω, να ψήνω και να κόβω. Έχω χρησιμοποιήσει πολλά ακονιστήρια αλλά αποφάσισα να κάνω ένα δώρο στον εαυτό μου που θα μου κρατήσει για μια ζωή. Αυτό το ακονιστήρι είναι πανεύκολο στη χρήση. Χρειάζονται μόνο μερικές δοκιμές για να το συνηθίσεις. Λατρεύω το γεγονός ότι δεν χρειάζεται να ξοδεύω χρόνο για κοφτερά μαχαίρια. Δεν είμαι μόνο εγώ ενθουσιασμένος, και οι φίλοι μου το λατρεύουν. Και φυσικά η 8ετής εγγύηση δείχνει πόσο σίγουρη είναι η Tormek για το προϊόν της.
Μην φοβηθείτε να επενδύσετε σε αυτό το ακονιστήρι. Έχω ξοδέψει πολλά χρήματα στο παρελθόν σε διάφορα άλλα, αλλά κανένα δεν κράτησε. Αυτό είναι μακράν το καλύτερο ακονιστήρι που θα μπορούσε να έχει ένα εστιατόριο. Είναι πανεύκολο στη χρήση, πολύ γρήγορο, και προσέξτε γιατί κάνει τα μαχαίρια πολύ κοφτερά!
Our angle is always the highest degree of precision. With the patented KS-123 Knife Angle Setter, you can set the exact sharpening angle from 8 to 25 degrees (per side). This gives you the flexibility to sharpen most types of knives to your preferred edge angle. Since you measure the angle with the apex as reference, any tapering of the blade will not affect your final angle.
Don’t know what your angle is? Learn more about knife sharpening and angles.

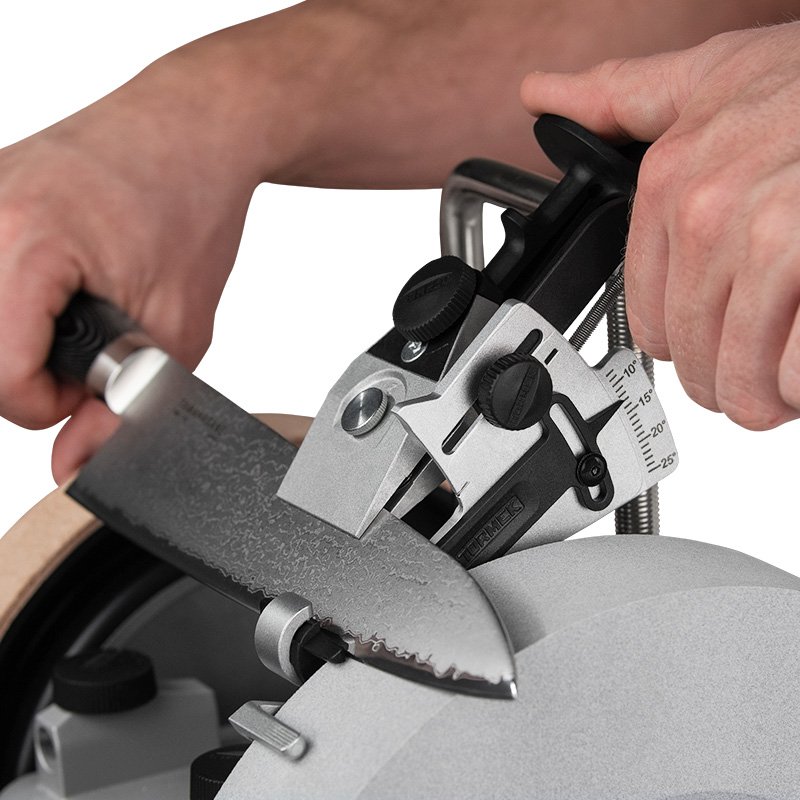

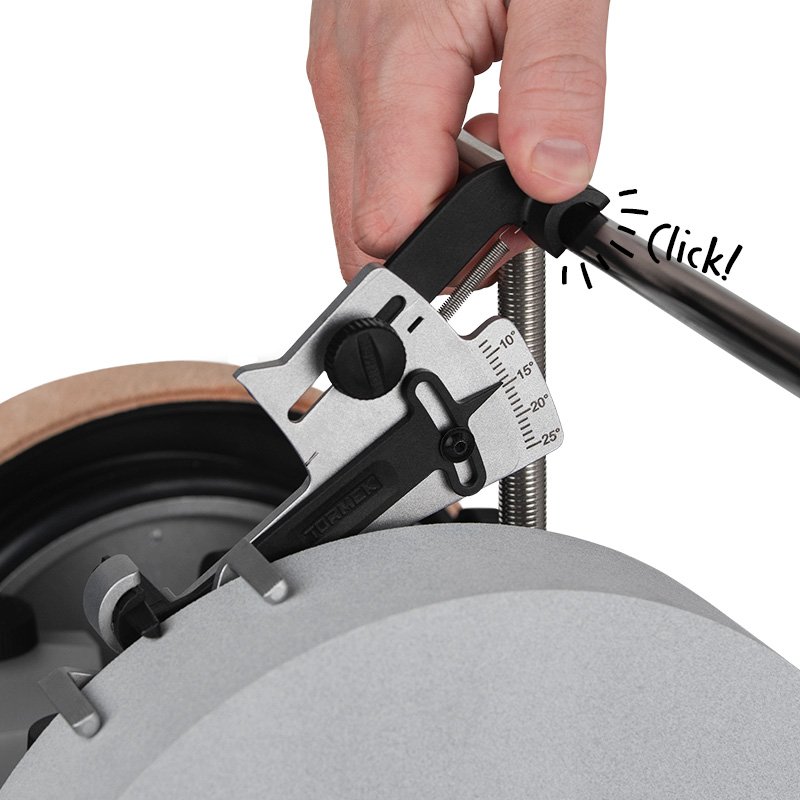

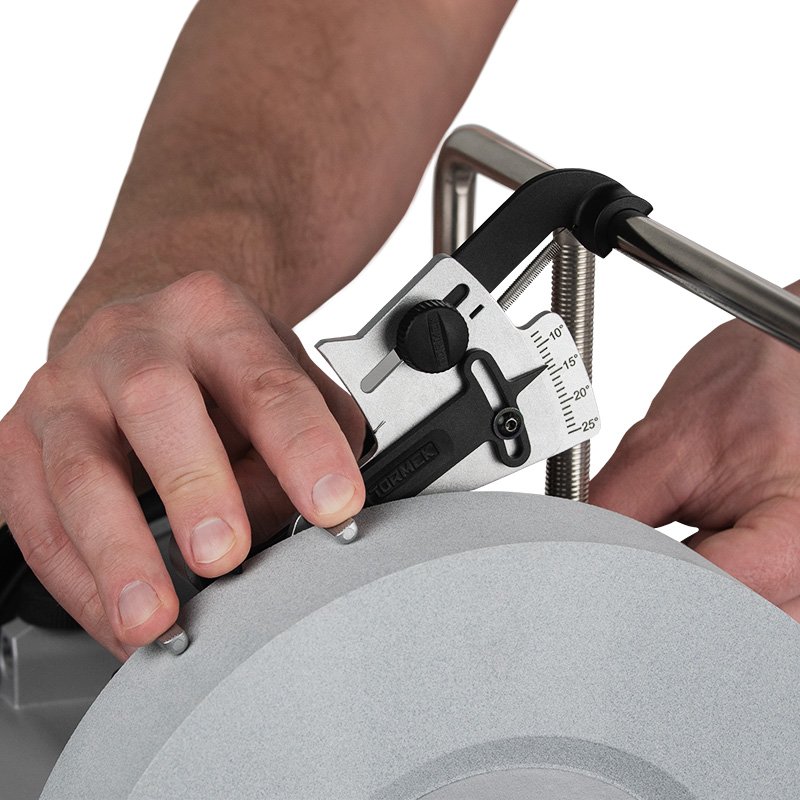

The KS-123 Knife Angle Setter is a patented and sophisticated accessory that is a must-have for any knife sharpening enthusiast. It is very easy to use, just follow these three steps:
And just like that your universal support is set to give your knife the exact angle you want. That’s why we think that the KS-123 Knife Angle Setter is the only device for setting the knife angle that you’ll ever need.
Inc. packaging: 0,18 kg (6.4 oz)
Product only: 0,15 kg (5.3 oz)
Gray/black
Min. blade height 12 mm (15/32″)
Max. blade height 80 mm (3 5/32″)
Cast zinc, composite
2-year warranty
Instructions KS-123 Knife Angle Setter pdf, 15.7 MB, opens in new window.
To see all patents, please visit tormek.com/patents
We show you how to use the KS-123 Knife Angle Setter to get the exact edge angle when sharpening any type of knife. We go through its features, such as the self adjustment for the diameter of the grinding wheel, and explain them in depth. Finding the sharpening angle for a knife has never been easier!
Find your angle with the KS-123 Knife Angle Setter.
The KS-123 Knife Angle Setter comes fully assembled and ready to use.
