Constant shape, efficient material removal and a nice finish

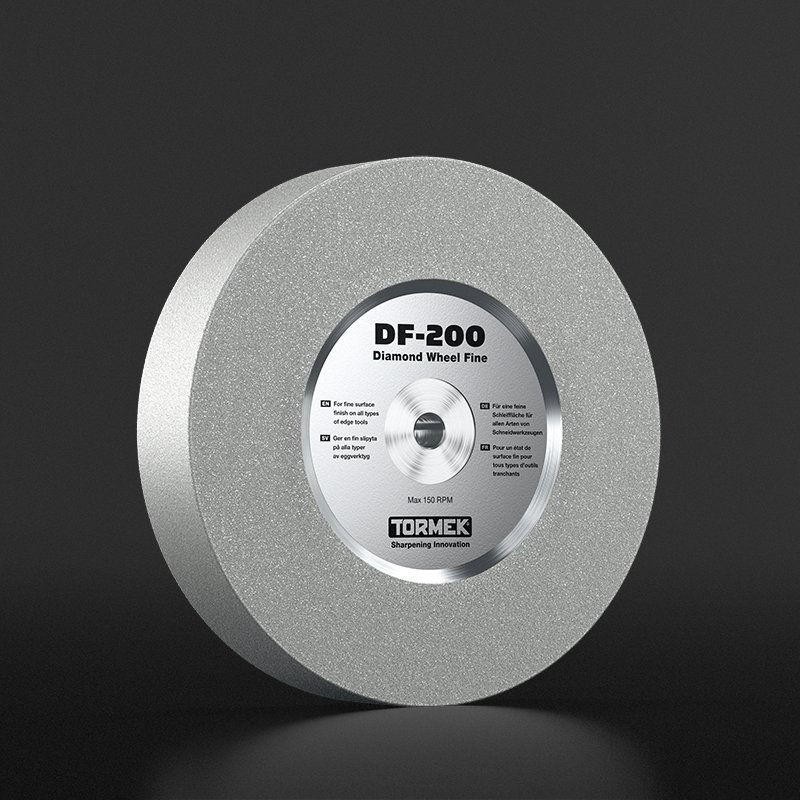

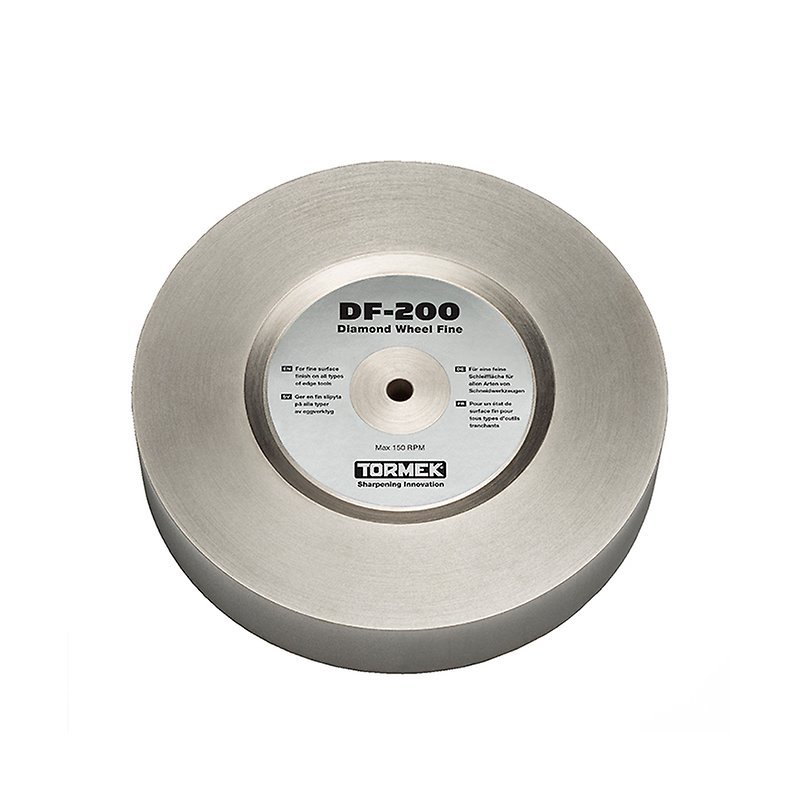

Diamond grinding wheel for Tormek T-4. Tormek’s DF-200 Diamond Wheel Fine is the ultimate all-round diamond grinding wheel, combining efficient steel removal with a smooth grinding surface. The wheel has a grit size of 600, providing effective sharpening and a smooth surface finish.
Μου αρέσει να μαγειρεύω, να ψήνω και να κόβω. Έχω χρησιμοποιήσει πολλά ακονιστήρια αλλά αποφάσισα να κάνω ένα δώρο στον εαυτό μου που θα μου κρατήσει για μια ζωή. Αυτό το ακονιστήρι είναι πανεύκολο στη χρήση. Χρειάζονται μόνο μερικές δοκιμές για να το συνηθίσεις. Λατρεύω το γεγονός ότι δεν χρειάζεται να ξοδεύω χρόνο για κοφτερά μαχαίρια. Δεν είμαι μόνο εγώ ενθουσιασμένος, και οι φίλοι μου το λατρεύουν. Και φυσικά η 8ετής εγγύηση δείχνει πόσο σίγουρη είναι η Tormek για το προϊόν της.
Μην φοβηθείτε να επενδύσετε σε αυτό το ακονιστήρι. Έχω ξοδέψει πολλά χρήματα στο παρελθόν σε διάφορα άλλα, αλλά κανένα δεν κράτησε. Αυτό είναι μακράν το καλύτερο ακονιστήρι που θα μπορούσε να έχει ένα εστιατόριο. Είναι πανεύκολο στη χρήση, πολύ γρήγορο, και προσέξτε γιατί κάνει τα μαχαίρια πολύ κοφτερά!
With this diamond wheel, you can sharpen nearly any type of material, including steel, ceramic and carbide. DF-200 Diamond Wheel Fine fits Tormek T-4 Original, Tormek T-4 Bushcraft, Tormek T-3 and earlier models with a 200 mm diameter grinding wheel.
All of Tormek’s diamond grinding wheels have exceptional durability with a constant removal rate and shape, which means that they always stay round and flat with a full-size diameter. Users who often sharpen the same tool benefit greatly from this, as it simplifies both setting up and sharpening.

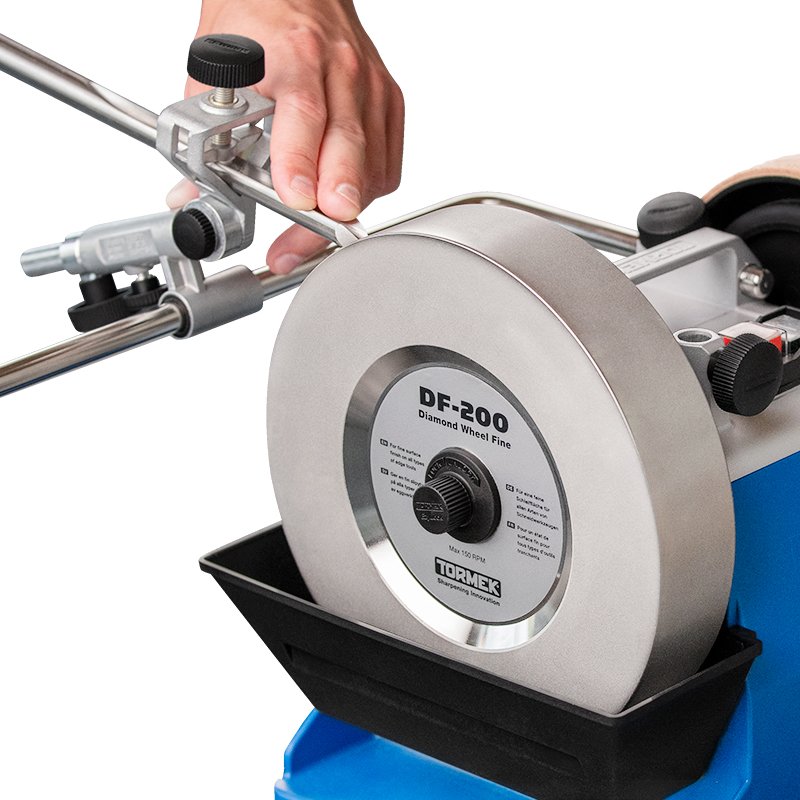

The constant shape makes it possible to grind either on the side of the wheel or on its upper surface. Side grinding is perfect for smaller tools such as knives, chisels, carving gouges and v-tools. The result is an edge with a completely flat bevel, instead of a slight hollow grind.
For sharpening on the side of the diamond wheels, we recommend using the MB-102 Multi Base together with the jig designed for your specific tool. Both the base and the jigs give you support and control throughout the sharpening process. If you’re not sure which jig you should use, find out here.
All diamond wheels are supplied with 150 ml of ACC-150 Anti-Corrosion Concentrate. Always add the concentrate to the water when sharpening with water to prevent rust on the grinding wheel. Add 10 ml of concentrate to 250 ml water (~4 %). We recommend always using water when sharpening with diamond grinding wheels if possible, as it both prolongs the service life of the wheel and provides a smoother sharpening surface. You can also sharpen without water.
Note: Apply only a very low pressure when sharpening on diamond grinding wheels. Instead, let the diamonds do the work. Important! Too high pressure when sharpening can damage the wheel beyond repair. Learn all about sharpening with diamond grinding wheels!
Design protected Ⓓ.
Diameter: 200 mm (7 7/8”)
Width: 40 mm (1 5/8”)
Freight weight 3,06 kg (6.75 lbs)
Silver
Machined steel core coated with diamond
600
2 year warranty
Important About Diamond Grinding Wheels pdf, 576.2 kB.
Instructions Mounting Grinding Wheels pdf, 2 MB.
Material safety data sheet ACC-150 EN pdf, 188.2 kB.
To see all patents visit tormek.com/patents
Watch as Wolfgang and Sébastien demonstrates our diamond grinding wheels for Tormek T-4.
Sébastien interviews our CEO Håkan who explains why we always chose diamond as an abrasive.
DF-200 Diamond Wheel Fine comes fully assembled and ready to use.
