Always sharp drill bits

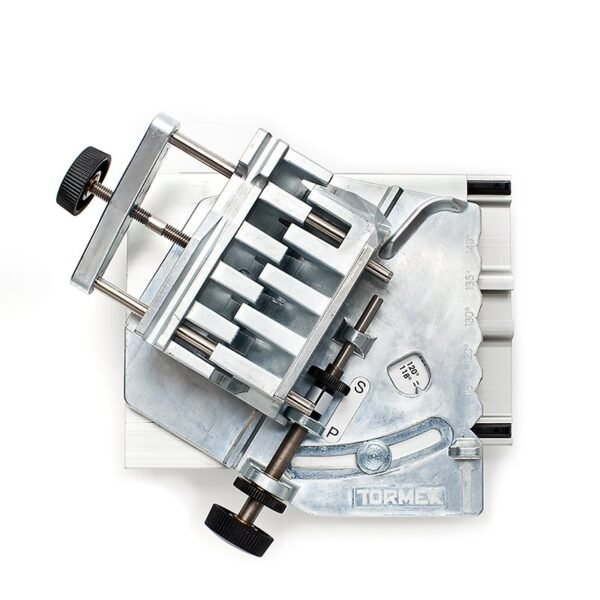

The DBS-22 Drill Bit Sharpening Attachment allows you to sharpen your drill bits from 3 mm (1/8″) to 22 mm (7/8″) in diameter with maximum precision and to give a four-facet point for best performance. The optimum tip and lip relief angle can be set for each drilling operation, taking into account the drill bit size and material. You can also sharpen broken bits back to the perfect shape.
Μου αρέσει να μαγειρεύω, να ψήνω και να κόβω. Έχω χρησιμοποιήσει πολλά ακονιστήρια αλλά αποφάσισα να κάνω ένα δώρο στον εαυτό μου που θα μου κρατήσει για μια ζωή. Αυτό το ακονιστήρι είναι πανεύκολο στη χρήση. Χρειάζονται μόνο μερικές δοκιμές για να το συνηθίσεις. Λατρεύω το γεγονός ότι δεν χρειάζεται να ξοδεύω χρόνο για κοφτερά μαχαίρια. Δεν είμαι μόνο εγώ ενθουσιασμένος, και οι φίλοι μου το λατρεύουν. Και φυσικά η 8ετής εγγύηση δείχνει πόσο σίγουρη είναι η Tormek για το προϊόν της.
Μην φοβηθείτε να επενδύσετε σε αυτό το ακονιστήρι. Έχω ξοδέψει πολλά χρήματα στο παρελθόν σε διάφορα άλλα, αλλά κανένα δεν κράτησε. Αυτό είναι μακράν το καλύτερο ακονιστήρι που θα μπορούσε να έχει ένα εστιατόριο. Είναι πανεύκολο στη χρήση, πολύ γρήγορο, και προσέξτε γιατί κάνει τα μαχαίρια πολύ κοφτερά!

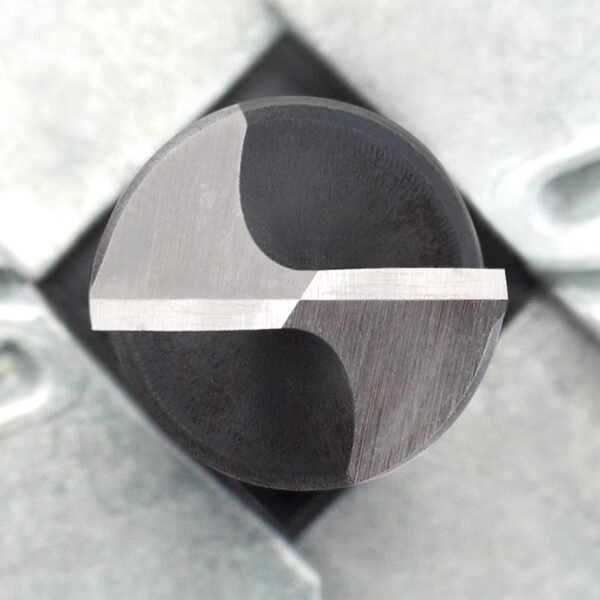

The patented DBS-22 Drill Bit Sharpening Attachment is used to create a four-facet point that provides great cutting characteristics as the cross-cut of the drill bit is pointed instead of being almost flat, as on many other drill bits. A four-facet point won’t wander and requires significantly less drilling pressure compared to a conventional cone point drill.
A precision-sharpened four-facet point also reduces heat build-up, giving a very long service life for the drill bit. Independent tests show that drill bits sharpened using Tormek equipment last more than four times longer than new conventional drill bits¹.
¹ Uddeholm Tooling AB, 2010. In the test, 15 mm (0.59″) deep holes were drilled in a hardened steel using a 6 mm (0.24″) drill bit. At a speed of 1326 rpm and 0.15 mm (0.006″) feed per revolution, the drill bits sharpened using the Tormek equipment lasted for 327 holes on average, while the new S-tip drill bits lasted for 72 holes.

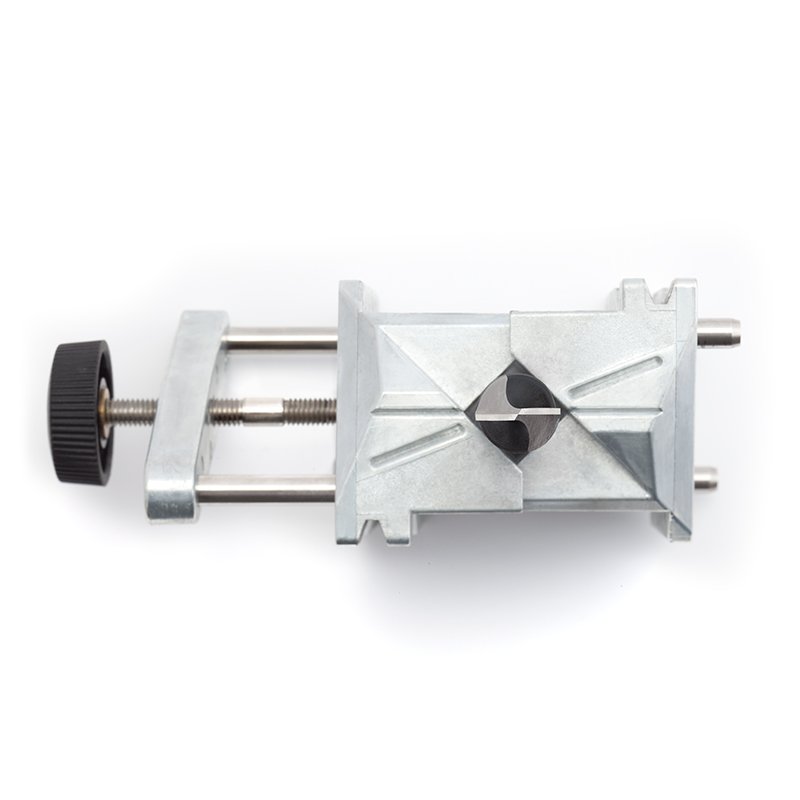

The risk of overheating and microcracking or loss of hardening of the steel is eliminated by working with the natural laws and cooling the edge continuously. You have full control at all times and can see how sharpening is progressing. A magnifying glass is included for smaller drill bits to help you line up the bit in the jig and see the results of your sharpening.
Shipping weight 3.35 kg (7.39 lb)
Gray/black
Precision-cast zinc, stainless steel, black composite
2-year warranty
Instructions DBS-22 pdf, 43.7 MB.
Parts breakdown DBS-22 EN pdf, 112.6 kB.
To see all patents, please visit tormek.com/patents
Watch this short introduction on how the DBS-22 Drill Bit Sharpening Attachment works.
In this video we demonstrate how to use the DBS-22 Drill Bit Sharpening Attachment to sharpen your drill bits and give them a four-facet point.
The DBS-22 Drill Bit Sharpening Attachment comes fully assembled and ready to use.
