For stable, free sharpening

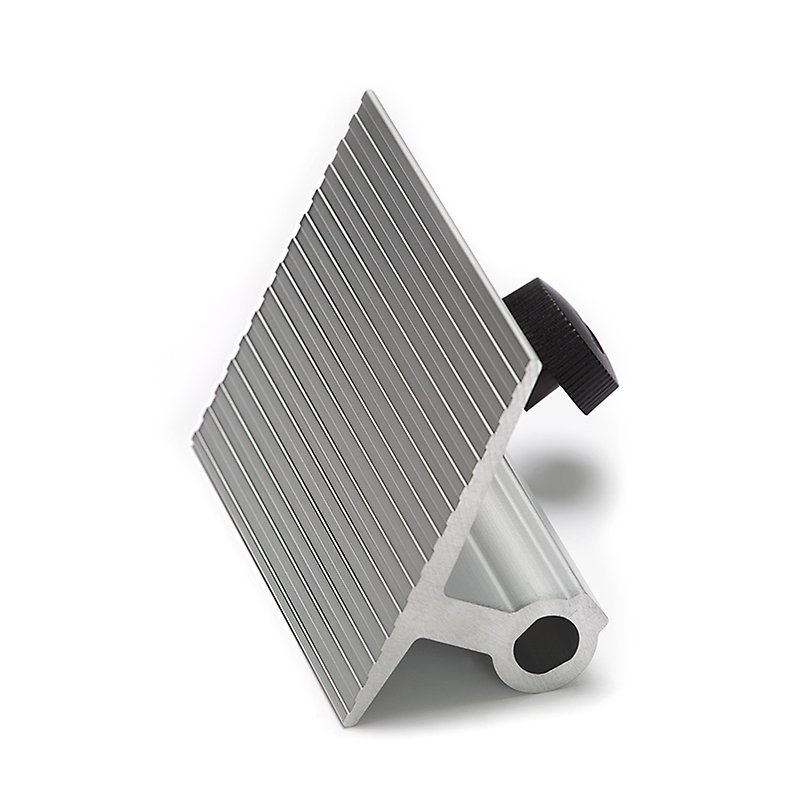

This tool rest gives you a larger support surface from the universal support. It’s ideal for sharpening various rounded scrapers for woodturning. The SVD-110 Tool Rest also works perfectly with special woodcarving tools such as hollowing tools and curved drawing knives. You can also use it for card scrapers and cutting blades for woodturning tools, spokeshave and flat-head screwdrivers.
Μου αρέσει να μαγειρεύω, να ψήνω και να κόβω. Έχω χρησιμοποιήσει πολλά ακονιστήρια αλλά αποφάσισα να κάνω ένα δώρο στον εαυτό μου που θα μου κρατήσει για μια ζωή. Αυτό το ακονιστήρι είναι πανεύκολο στη χρήση. Χρειάζονται μόνο μερικές δοκιμές για να το συνηθίσεις. Λατρεύω το γεγονός ότι δεν χρειάζεται να ξοδεύω χρόνο για κοφτερά μαχαίρια. Δεν είμαι μόνο εγώ ενθουσιασμένος, και οι φίλοι μου το λατρεύουν. Και φυσικά η 8ετής εγγύηση δείχνει πόσο σίγουρη είναι η Tormek για το προϊόν της.
Μην φοβηθείτε να επενδύσετε σε αυτό το ακονιστήρι. Έχω ξοδέψει πολλά χρήματα στο παρελθόν σε διάφορα άλλα, αλλά κανένα δεν κράτησε. Αυτό είναι μακράν το καλύτερο ακονιστήρι που θα μπορούσε να έχει ένα εστιατόριο. Είναι πανεύκολο στη χρήση, πολύ γρήγορο, και προσέξτε γιατί κάνει τα μαχαίρια πολύ κοφτερά!

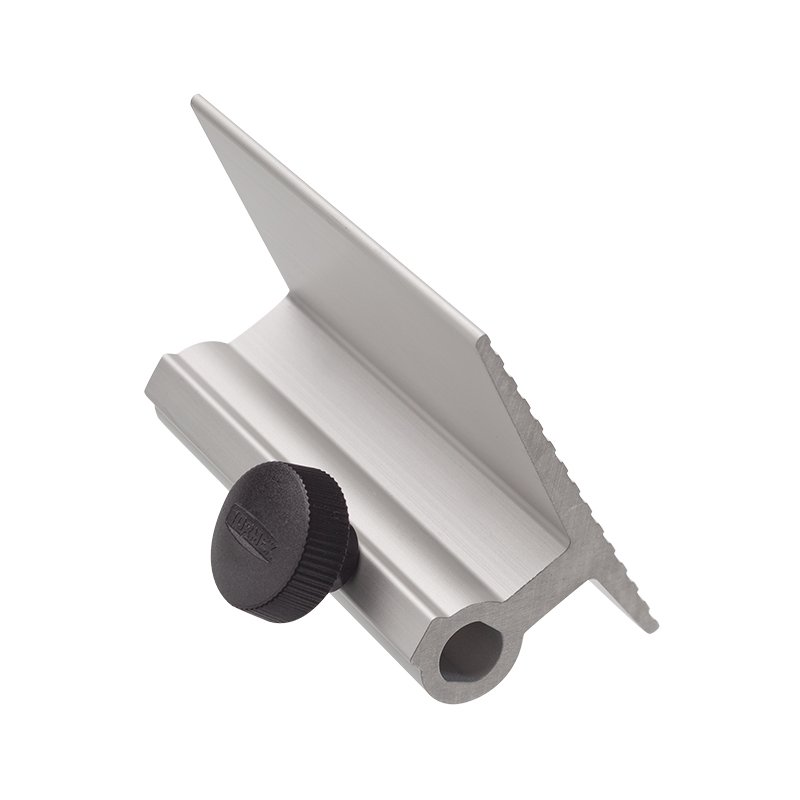

Scrapers often have a fairly large angle, which can make sharpening hard to control. That’s why the SVD-110 Tool Rest has a generous 90×110 mm (3 1/2″ × 4 3/8″) surface area, allowing you to hold the tool firmly and securely against the grinding wheel. The hole where you attach the tool rest has a special wedge shape which increases the locking force by as much as 250% compared to a round hole. You can lock the tool rest instantly at the selected angle.

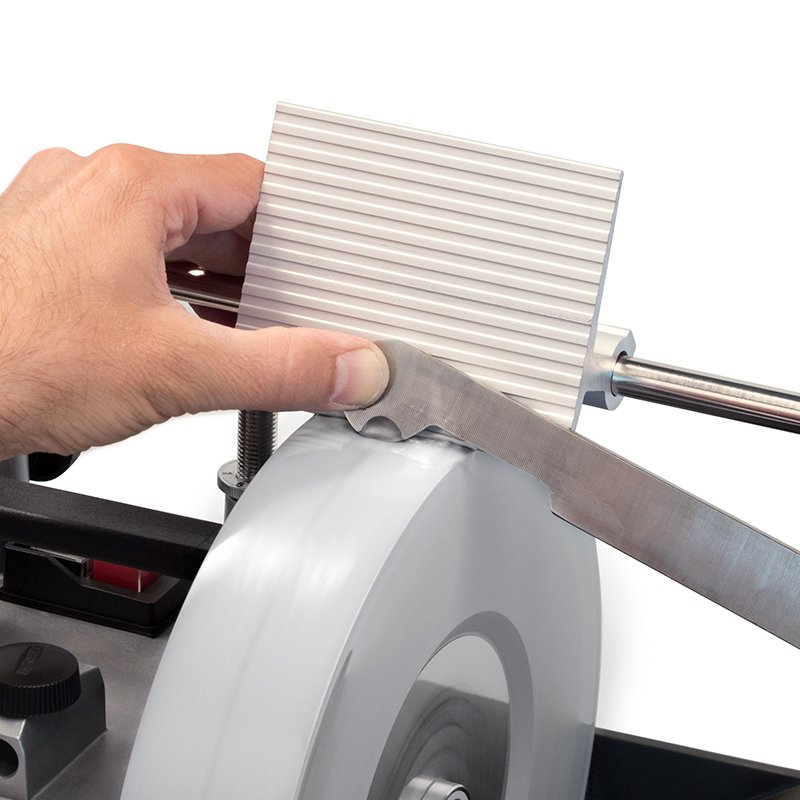

The SVD-110 Tool Rest can be used both with and against the direction of rotation of the grinding wheel. It can also be positioned so that you can use the flat side of the grinding wheel when sharpening card scrapers, for example. Many hard-to-sharpen tools that don’t fit in any other jig or have unusual sharpening angles can be sharpened using the SVD-110 Tool Rest, in a number of other positions with a little creativity.
Shipping weight 0.27 kg (0.59 lb)
Gray/black
Aluminum, black composite
2-year warranty
Instructions SVD-110 EN pdf, 749.6 kB.
Parts breakdown SVD-110 EN pdf, 14.4 kB.
To see all patents, please visit tormek.com/patents
Watch this short introduction on how the SVD-110 Tool Rest works.
Wolfgang and Sébastien demonstrate how to use the SVD-110 Tool Rest to sharpen woodturning scrapers.
The SVD-110 Tool Rest comes fully assembled and ready to use.
